Studio comes with all the tools to make beautiful renders and they're created directly in Studio.
Overview / Quick Render

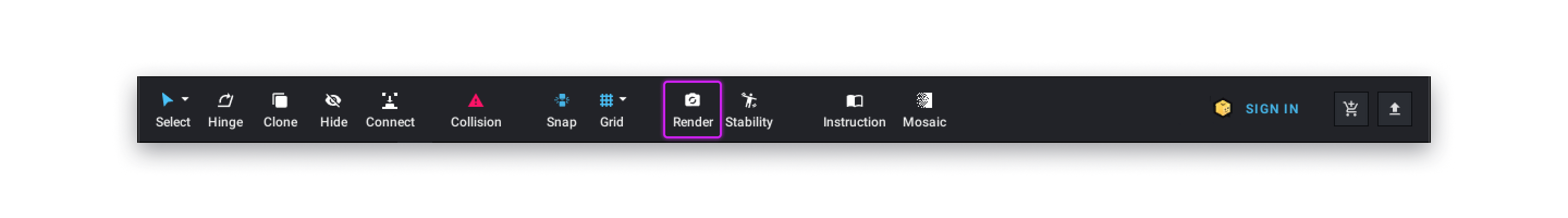

To open the render dialog, click Render in the toolbar or use the menu entry File | Render image…

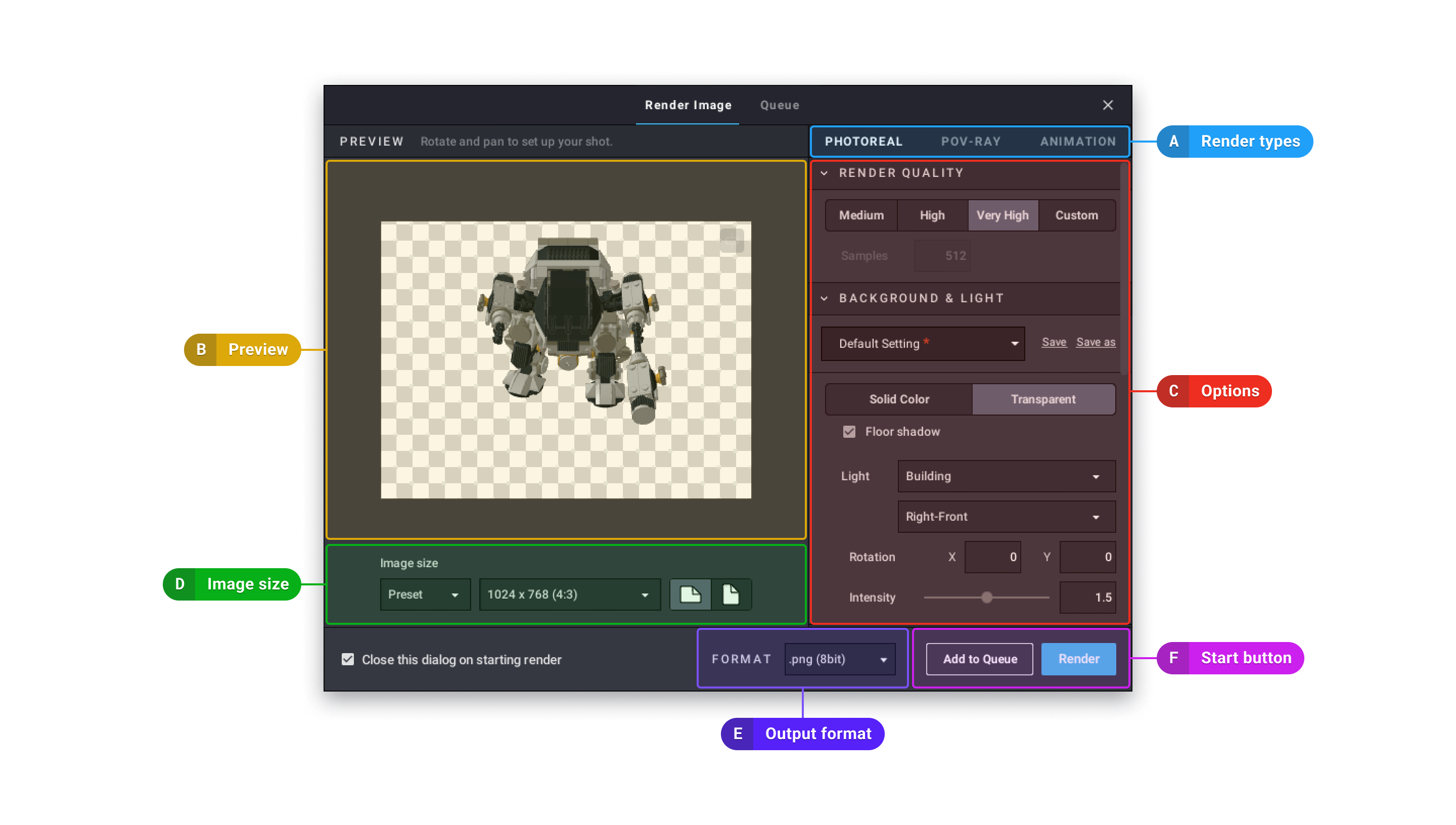

A. Render type
- Photoreal: use Eyesight path tracer engine to generate render images of designs.
- POV-Ray: use the POV-Ray ray-tracer to generate render images of designs.
- Animation: use Eyesight engine to make a short video, like revolving or fast-forward building videos of designs
B. Preview: set up a camera angle and view for the preview area.
C. Inspector: settings for each render option.
D. Size: set the size and orientation of the rendered image.
E. Output format: define the file format for the rendered image or animation.
F. Start button:
- Render: starts the render immediately.
- Add to queue: add the current file and settings to a queue. Image(s) will be rendered later upon execution.

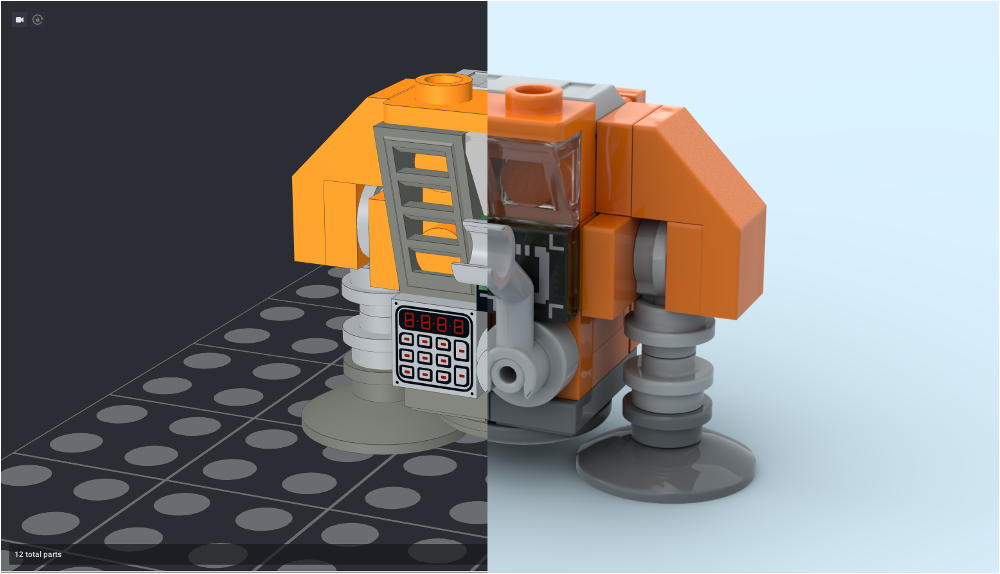

How to render your items in a photorealistic image
- The open tab needs to be set to Photoreal (A)
- Adjust the camera angle and zoom level in the preview (D) if desired:
- Hold the left mouse button and drag to pan the camera, (or hold Shift and use any mouse button)
- Hold the right mouse button and drag to rotate the model, (or hold Ctrl and use any mouse button)
- Use the mouse wheel to zoom in or out
- You can use the button in the top right corner of the image to recenter the model
- Click Render (H)
- Choose a file name for your image and where you want it saved.
- The render will start and show a preview.
Closing the preview window will stop the render and it won’t be saved. - When the render is done, the preview closes automatically, and the image is opened.
See Eyesight options for more info about rendering with Eyesight.
- The camera angle and zoom in the viewport is used as the default for rendering.
- Studio has special colors for renders:
- Rubber: colors are matte and don’t reflect light. They imitate the rubber material of LEGO® tires and rubber bands.
- Glowing Neon, Luminous Soft, Luminous, Translucent, and Glow in Dark: These colors emit light, from a low glow to more luminous effects. You’ll need to lower the ambient light to see their lighting effects.
